MIL-PRF-10436 Compass, Magnetic, Unmounted: Lensatic, Luminous, 5 Degree And 20 Mil Graduations, With Carrying CaseThis specification covers an induction-damped, lensatic, unmounted, magnetic compass, with 5 degree and 20 mil graduations, for individual use during day and nighttime.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-10436N
REF ONLY
SIGHT WIRE
COVER
SELF-LUMINOUS
LIGHT SOURCES
BASE
BEZEL
THUMB
LOOP
REAR SIGHT ARM
PLAN VIEW
SIDE VIEW
COMPASS - OPEN

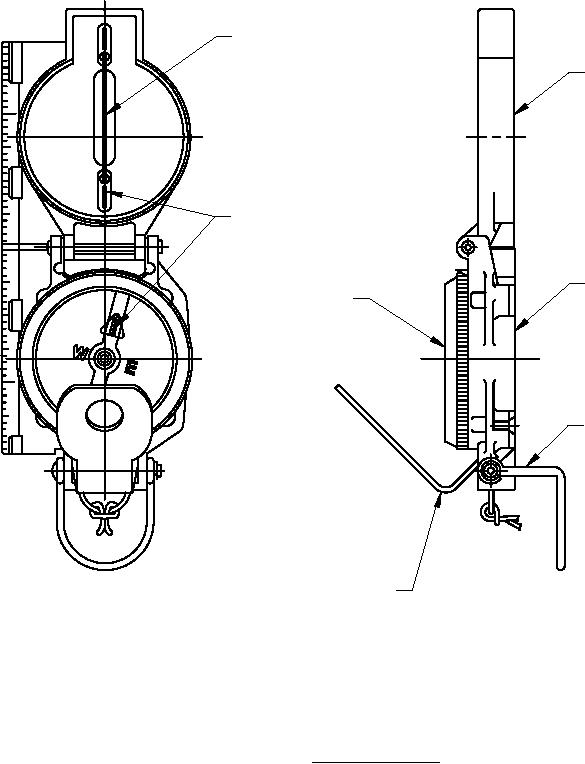

FIGURE 1A. Lensatic compass.
